R37DRE80M4詳細信息
R37DRE80M4
訂購熱線：13360667204
關鍵詞：輸出轉數359.5圈/分鐘減速機電機_R37DRE80M4_R37DM80M4_輸出轉數359.5圈一分鐘減速電機_一分鐘轉359.5圈齒輪減速箱馬達_一分鐘轉359.5圈減速器_一分鐘轉359.5圈電機減速機
R37DRE80M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R37DRE80M4 | 48.08 | 0.75KW | 30.0rpm | 240N.m | 24.5kg | 3550N | 0.85 |
| R37DRE80M4 | 44.81 | 0.75KW | 32.0rpm | 220N.m | 24.5kg | 4480N | 0.90 |
| R37DRE80M4 | 39.17 | 0.75KW | 37.0rpm | 196N.m | 24.5kg | 4760N | 1.00 |
| R37DRE80M4 | 36.72 | 0.75KW | 39.0rpm | 183N.m | 24.5kg | 4700N | 1.10 |
| R37DRE80M4 | 32.40 | 0.75KW | 44.0rpm | 162N.m | 24.5kg | 4570N | 1.25 |
| R37DRE80M4 | 28.73 | 0.75KW | 50.0rpm | 143N.m | 24.5kg | 4450N | 1.40 |
| R37DRE80M4 | 24.42 | 0.75KW | 59.0rpm | 122N.m | 24.5kg | 4280N | 1.65 |
| R37DRE80M4 | 22.27 | 0.75KW | 64.0rpm | 111N.m | 24.5kg | 4180N | 1.80 |
| R37DRE80M4 | 19.31 | 0.75KW | 74.0rpm | 96N.m | 24.5kg | 4040N | 2.10 |
| R37DRE80M4 | 18.05 | 0.75KW | 80.0rpm | 90N.m | 24.5kg | 3960N | 2.20 |
| R37DRE80M4 | 15.60 | 0.75KW | 92.0rpm | 78N.m | 24.5kg | 3810N | 2.60 |
| R37DRE80M4 | 13.25 | 0.75KW | 108rpm | 66N.m | 24.5kg | 3650N | 2.90 |
| R37DRE80M4 | 11.83 | 0.75KW | 121rpm | 59N.m | 24.5kg | 3540N | 3.10 |
| R37DRE80M4 | 10.11 | 0.75KW | 142rpm | 50N.m | 24.5kg | 3380N | 3.40 |
| R37DRE80M4 | 9.47 | 0.75KW | 152rpm | 47N.m | 24.5kg | 3320N | 3.50 |
R37DM80M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R37DM80M4 | 48.08 | 0.75KW | 30.0rpm | 240N.m | 24.5kg | 3550N | 0.85 |
| R37DM80M4 | 44.81 | 0.75KW | 32.0rpm | 220N.m | 24.5kg | 4480N | 0.90 |
| R37DM80M4 | 39.17 | 0.75KW | 37.0rpm | 196N.m | 24.5kg | 4760N | 1.00 |
| R37DM80M4 | 36.72 | 0.75KW | 39.0rpm | 183N.m | 24.5kg | 4700N | 1.10 |
| R37DM80M4 | 32.40 | 0.75KW | 44.0rpm | 162N.m | 24.5kg | 4570N | 1.25 |
| R37DM80M4 | 28.73 | 0.75KW | 50.0rpm | 143N.m | 24.5kg | 4450N | 1.40 |
| R37DM80M4 | 24.42 | 0.75KW | 59.0rpm | 122N.m | 24.5kg | 4280N | 1.65 |
| R37DM80M4 | 22.27 | 0.75KW | 64.0rpm | 111N.m | 24.5kg | 4180N | 1.80 |
| R37DM80M4 | 19.31 | 0.75KW | 74.0rpm | 96N.m | 24.5kg | 4040N | 2.10 |
| R37DM80M4 | 18.05 | 0.75KW | 80.0rpm | 90N.m | 24.5kg | 3960N | 2.20 |
| R37DM80M4 | 15.60 | 0.75KW | 92.0rpm | 78N.m | 24.5kg | 3810N | 2.60 |
| R37DM80M4 | 13.25 | 0.75KW | 108rpm | 66N.m | 24.5kg | 3650N | 2.90 |
| R37DM80M4 | 11.83 | 0.75KW | 121rpm | 59N.m | 24.5kg | 3540N | 3.10 |
| R37DM80M4 | 10.11 | 0.75KW | 142rpm | 50N.m | 24.5kg | 3380N | 3.40 |
| R37DM80M4 | 9.47 | 0.75KW | 152rpm | 47N.m | 24.5kg | 3320N | 3.50 |

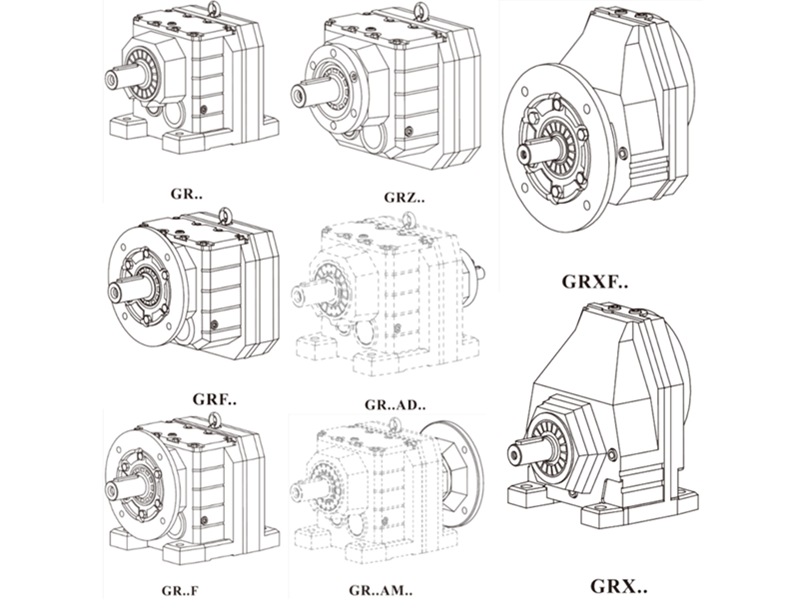

R37DRE80M4電機減速機類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機
R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機
R37DRE80M4電機減速機安裝尺寸圖紙
R37DRE80M4電機減速機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
R系列減速機應用案例展示：
關鍵詞:R系列減速機與電機_臥式減速機_臥式齒輪減速電機一套_臥式齒輪減速機_R系列減速機生產廠家_臥式減速機生產廠家_臥式齒輪減速機生產廠家
R系列減速機型號：R17減速機,R27減速機,R37減速機,R47減速機,R57減速機,R67減速機,R77減速機,R87減速機,R97減速機,R107減速機,R137減速機,R147減速機,R167減速機
R系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 輸出轉數359.5圈/分鐘減速機電機 R37DRE80M4 R37DM80M4 輸出轉數359.5圈一分鐘減速電機 一分鐘轉359.5圈齒輪減速箱馬達 一分鐘轉359.5圈減速器 一分鐘轉359.5圈電機減速機
